规格参数

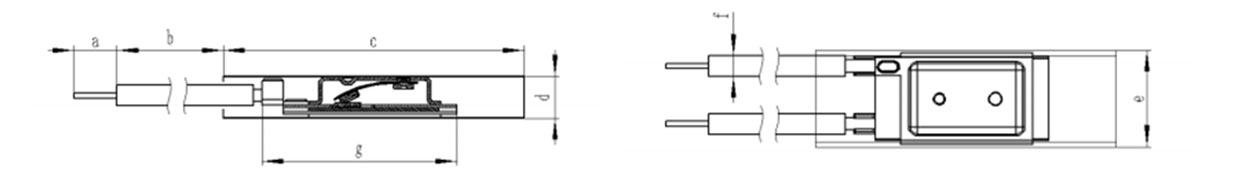

單位：mm
a | b | c | d | e | f | g |
7±2.0 | 53±2.0 | 35±2 | 5±0.5 | 10.8±0.5 | Ф2.7±0.2 | 23.0±1.0 |
| Model No型號(hào) | Ir(A)/Ur(Vac)電流/電壓 | Functioning temp(℃)斷開(kāi)溫度(℃) | Resetting temp(℃)復(fù)位溫度(℃) | Safety Approval安規(guī)證書 | |||
| 17AM60 | 9A/250VAC 18A/125VAC | 60±5℃ | 42±12℃ | UL | CUL | TUV | CQC |
| 17AM65 | 9A/250VAC 18A/125VAC | 65±5℃ | 45±12℃ | ● | ● | ● | ● |
| 17AM70 | 9A/250VAC 18A/125VAC | 70±5℃ | 50±12℃ | ● | ● | ● | ● |
| 17AM75 | 9A/250VAC 18A/125VAC | 75±5℃ | 55±15℃ | ● | ● | ● | ● |
| 17AM80 | 9A/250VAC 18A/125VAC | 80±5℃ | 55±15℃ | ● | ● | ● | ● |
| 17AM85 | 9A/250VAC 18A/125VAC | 85±5℃ | 60±15℃ | ● | ● | ● | ● |
| 17AM90 | 9A/250VAC 18A/125VAC | 90±5℃ | 65±15℃ | ● | ● | ● | ● |
| 17AM95 | 9A/250VAC 18A/125VAC | 95±5℃ | 70±15℃ | ● | ● | ● | ● |
| 17AM100 | 9A/250VAC 18A/125VAC | 100±5℃ | 70±15℃ | ● | ● | ● | ● |
| 17AM105 | 9A/250VAC 18A/125VAC | 105±5℃ | 75±15℃ | ● | ● | ● | ● |
| 17AM110 | 9A/250VAC 18A/125VAC | 110±5℃ | 75±15℃ | ● | ● | ● | ● |
| 17AM115 | 9A/250VAC 18A/125VAC | 115±5℃ | 80±15℃ | ● | ● | ● | ● |
| 17AM120 | 9A/250VAC 18A/125VAC | 120±5℃ | 80±15℃ | ● | ● | ● | ● |
| 17AM125 | 9A/250VAC 18A/125VAC | 125±5℃ | 85±15℃ | ● | ● | ● | ● |
| 17AM130 | 9A/250VAC 18A/125VAC | 130±5℃ | 90±15℃ | ● | ● | ● | ● |
| 17AM135 | 9A/250VAC 18A/125VAC | 135±5℃ | 95±15℃ | ● | ● | ● | ● |
| 17AM140 | 9A/250VAC 18A/125VAC | 140±5℃ | 100±15℃ | ● | ● | ● | ● |
| 17AM145 | 9A/250VAC 18A/125VAC | 145±5℃ | 105±15℃ | ● | ● | ● | ● |
| 17AM150 | 9A/250VAC 18A/125VAC | 150±5℃ | 110±15℃ | ● | ● | ● | ● |
| 17AM155 | 9A/250VAC 18A/125VAC | 155±5℃ | 115±15℃ | ● | ● | ● | ● |
| 17AM160 | 9A/250VAC 18A/125VAC | 160±5℃ | 120±15℃ | ● | ● | ● | ● |
| 17AM165 | 9A/250VAC 18A/125VAC | 165±5℃ | 125±15℃ | ● | ● | ● | ● |
| 17AM170 | 9A/250VAC 18A/125VAC | 170±5℃ | 130±15℃ | ● | ● | ● | ● |
